Description

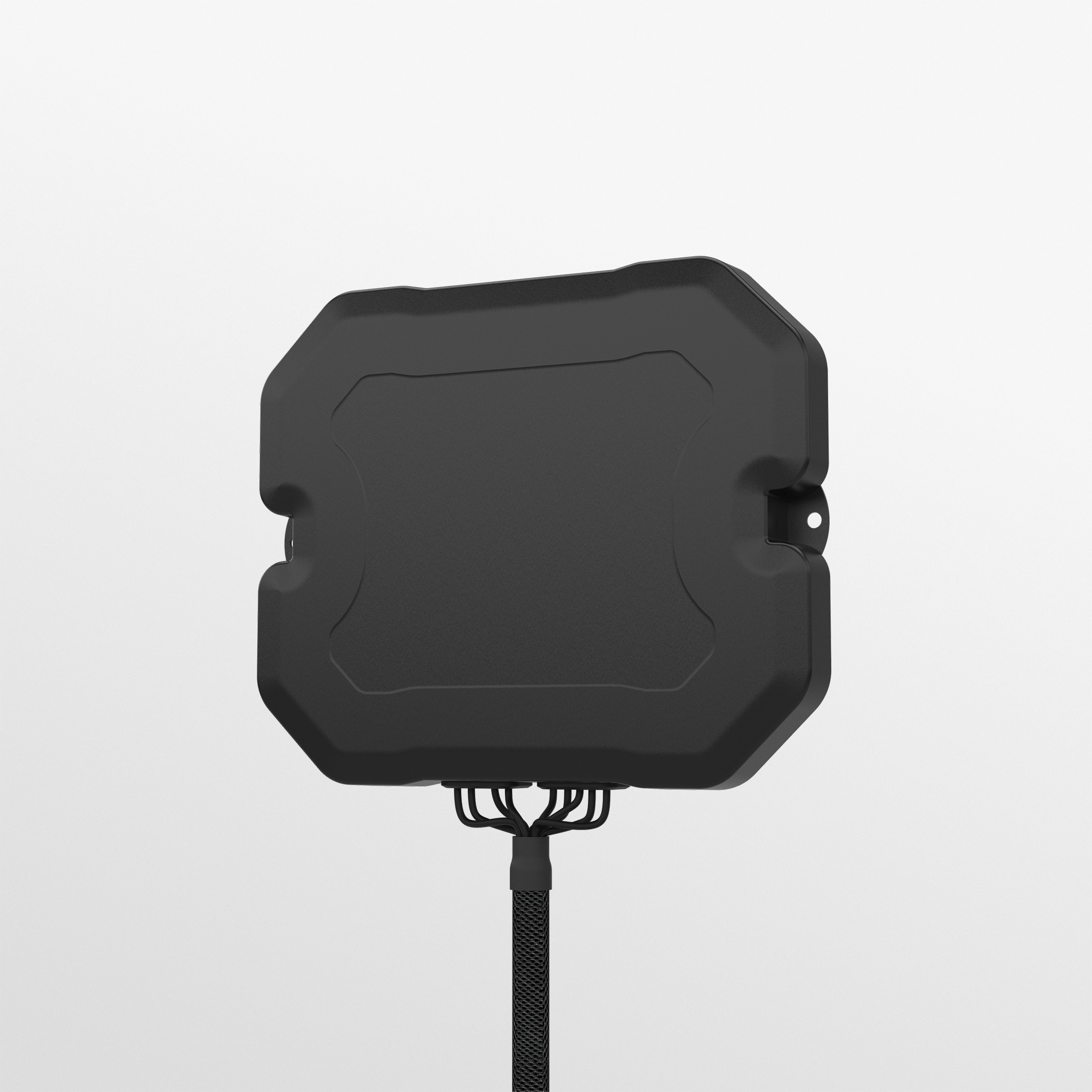

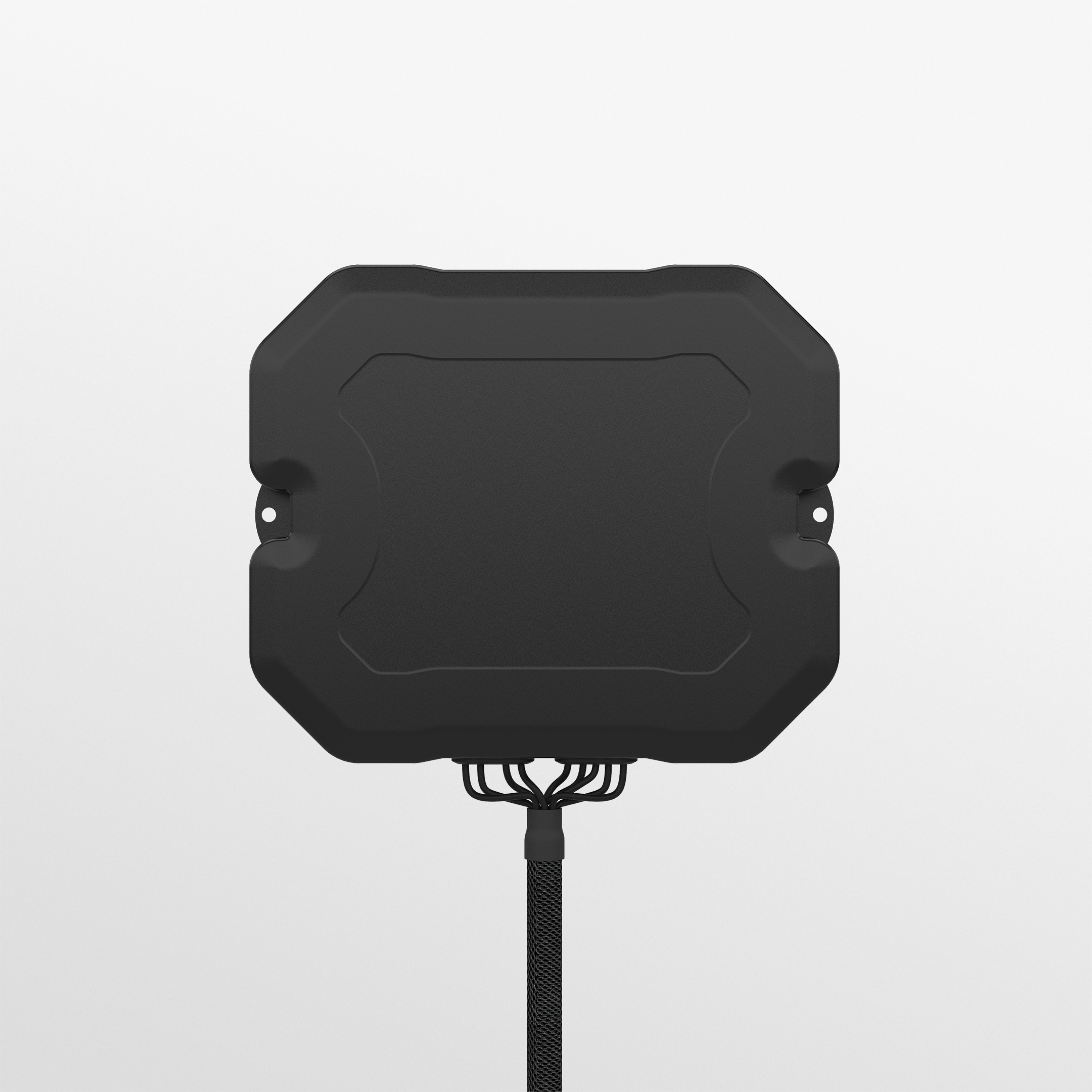

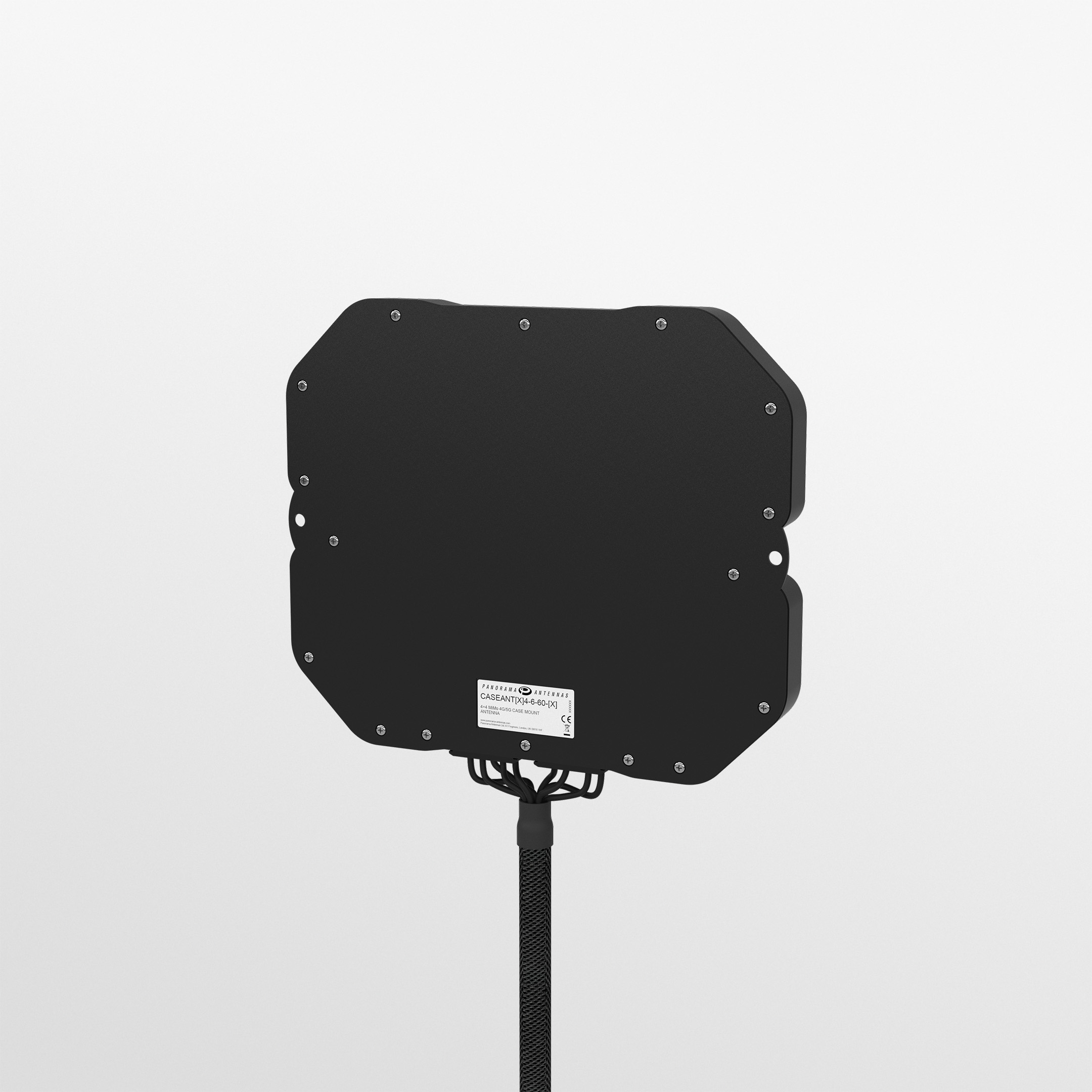

The Panorama CASEANT[[X]4-6-60-[X] range is a 4×4 MiMo antenna
solution for 4G / 5G specifically designed for deployable cases.
The 4G/5G antenna elements cover 617-960/1427-6000MHz providing a
robust communications link to ensure high data rates even in
challenging network coverage areas.
The efficient element design allows
the antennas to work when the case is open or closed.
CASEANTG[5]4 variants include a GPS/GNSS module with advanced
filtering covering either L1/E1/G1/B1 or L1/E1/G1/B1 & L5. Additional
variants also contain 2,3 or 4 WiFi elements which cover 2.4-7.2GHz for
WiFi 6e.
The antenna is supplied with integrated low loss flame retardant cables
fitted with protective sleeving to assist with routing within the case and
right angled connectors for easy installation.
Panorama can provide RF measurement services for case products
and design of foam inserts, ducting and other installation collateral upon
request. These services are sold separately.
